metal cutting
Haoda Machinery

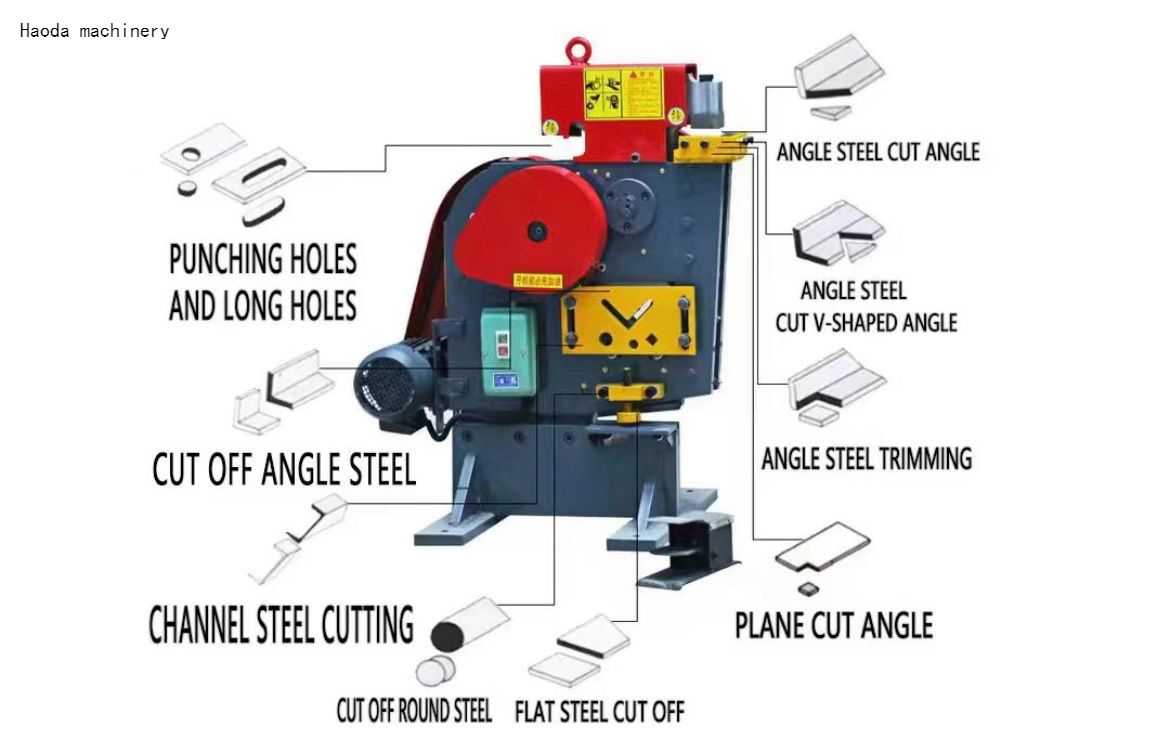

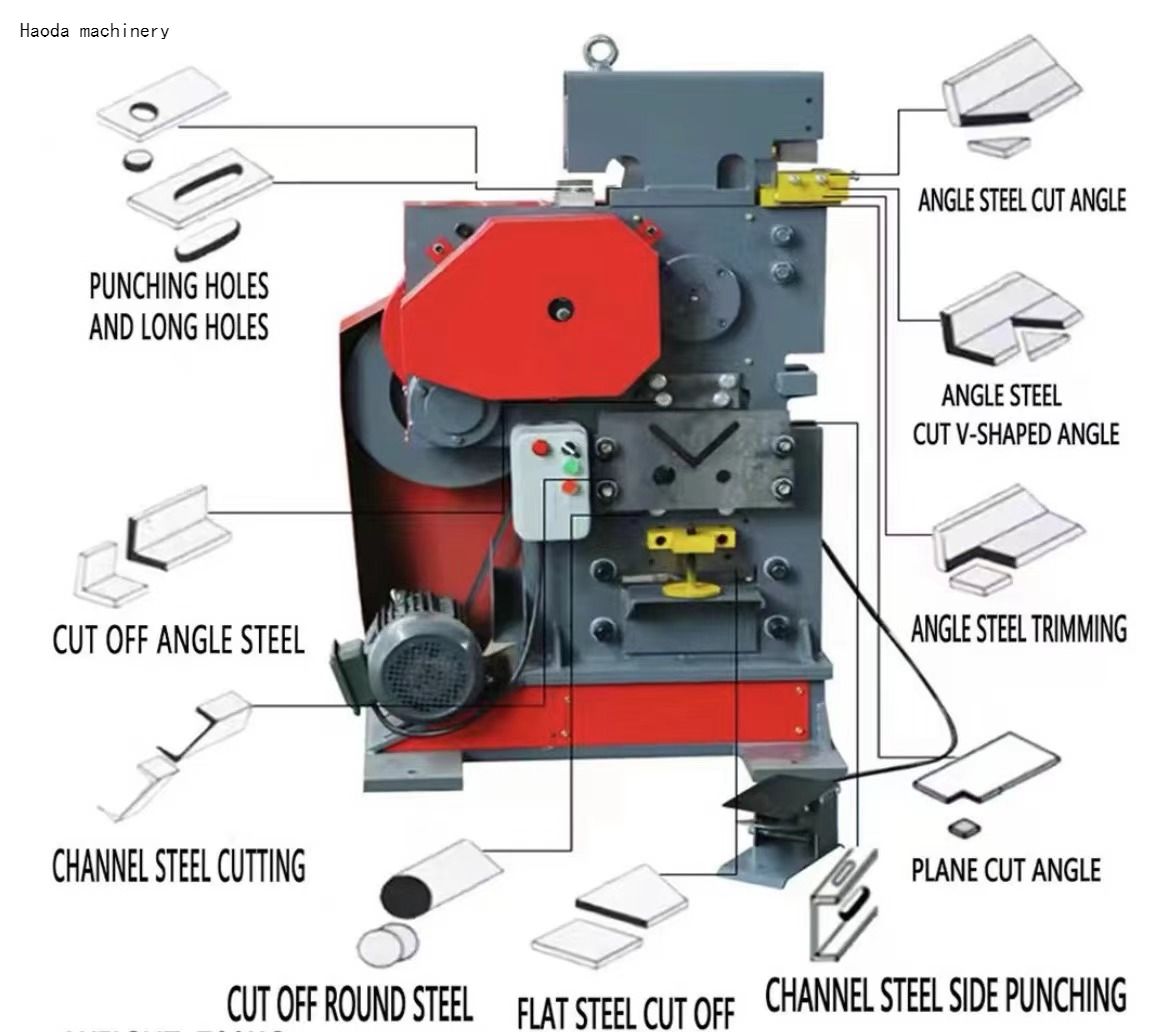

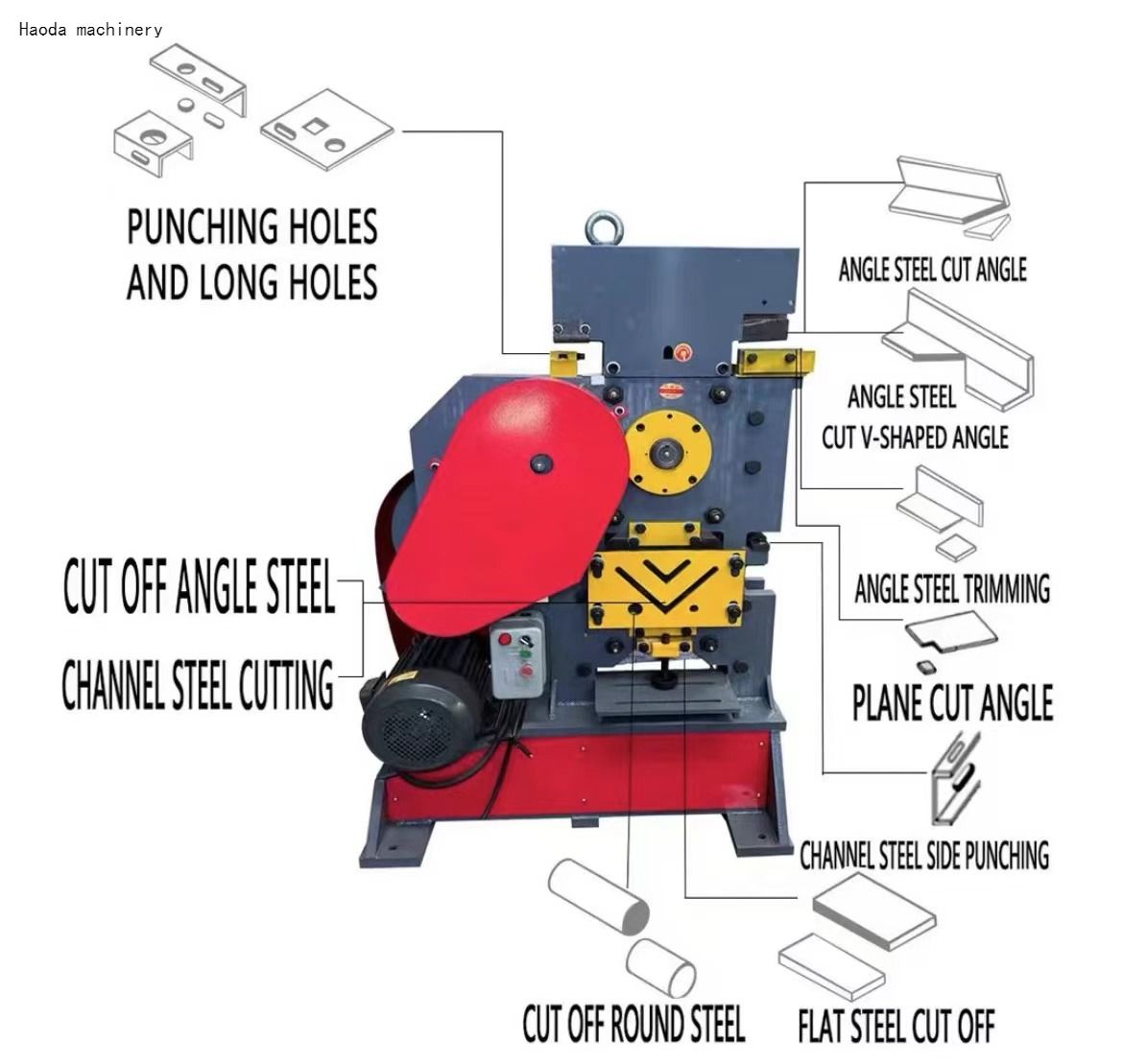

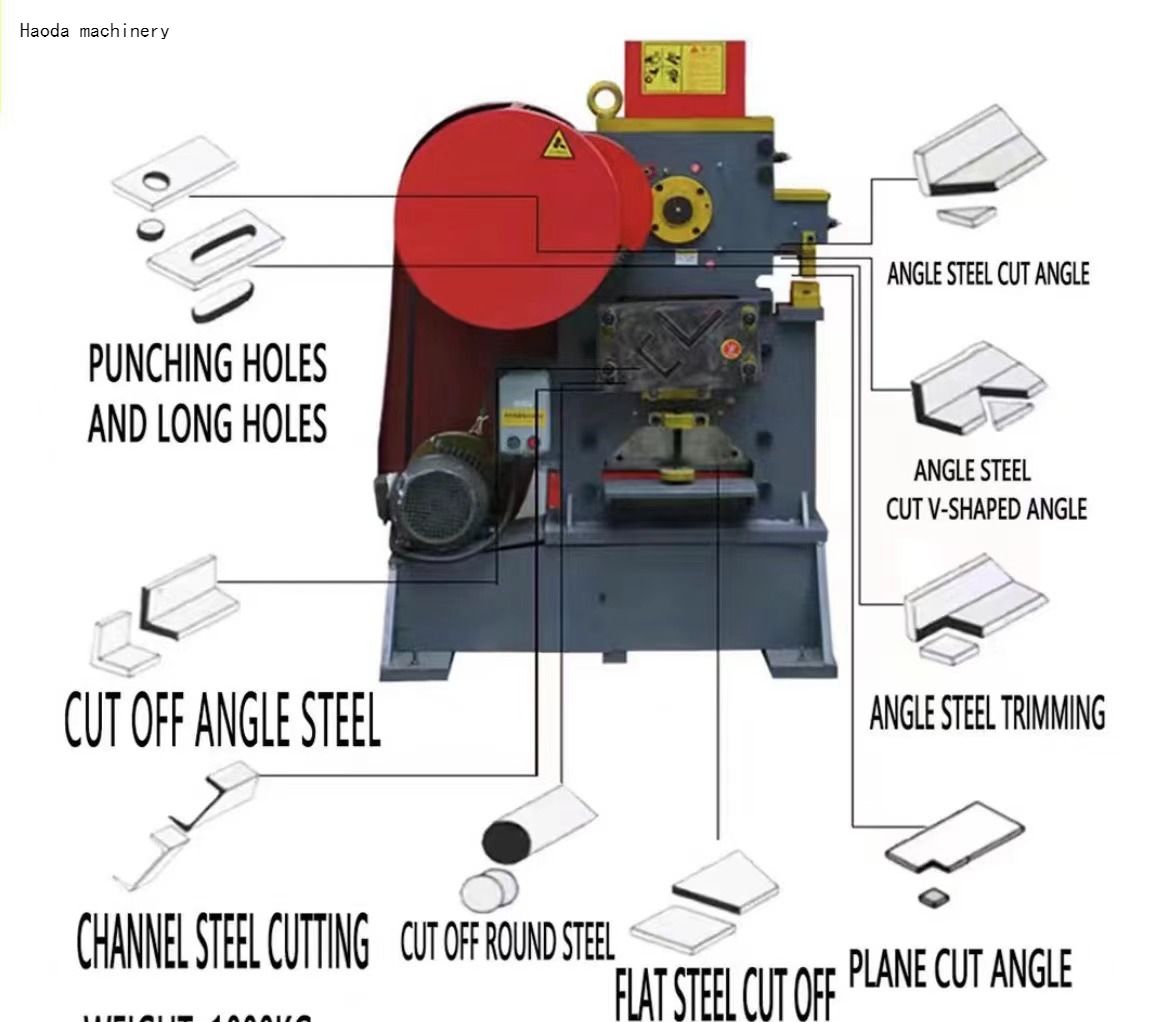

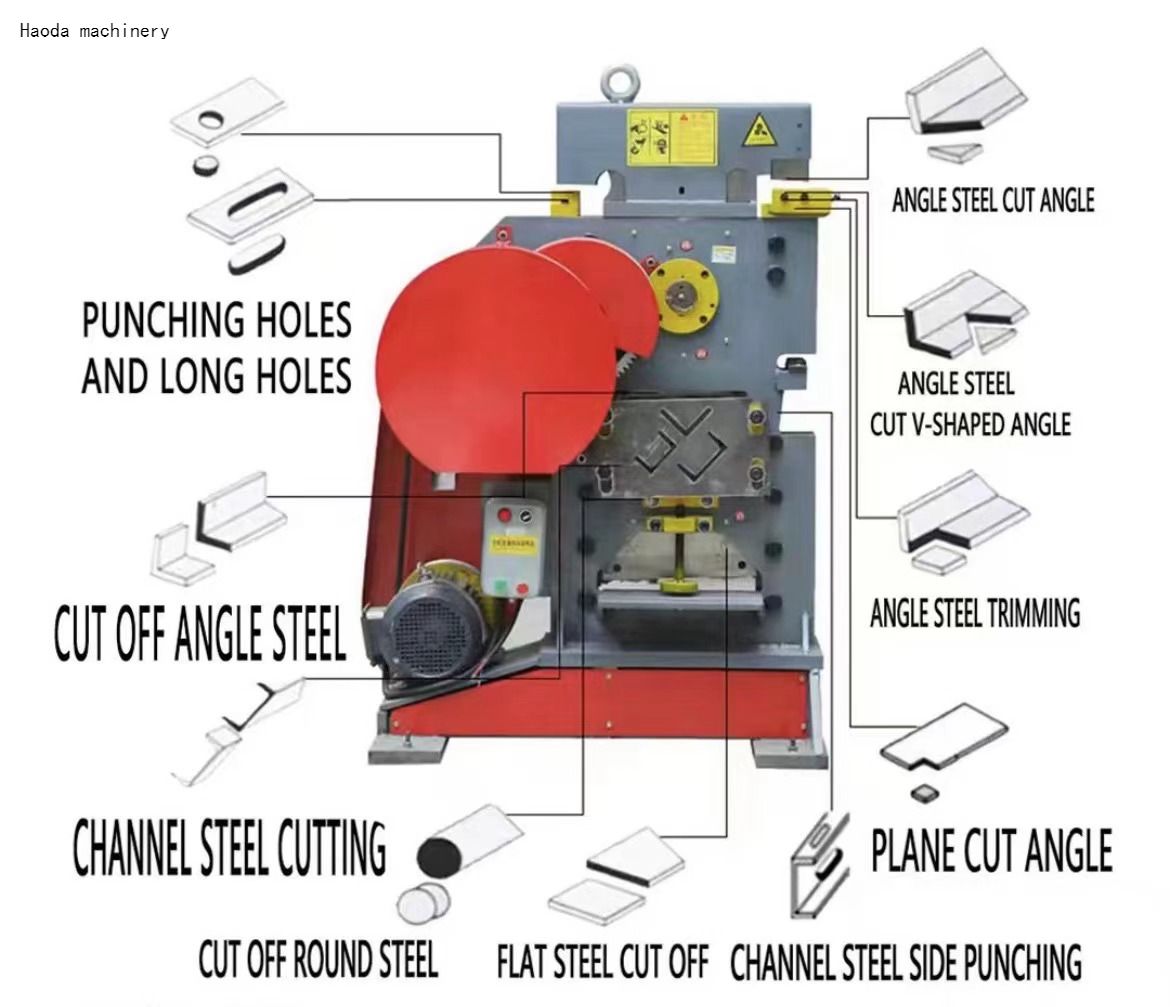

Punching and shearing machine can cut round steel, angle steel, shear plate, punch and cut holes. It is an ideal multifunctional manual shearing tool.
At present, the machine has reasonable design, beautiful appearance, compact structure, stable performance, small volume, light weight, multi-purpose, flexible operation, convenient use and maintenance, and is widely used in cutting, punching and die-cutting of plates and profiles.
| Address : | Xingtai lndustrial Zone,Hebei Province/ China | ||||
| PRODUT : |  | | | | |
| MODEL : | QA32-8B | QA32-10B | QA32-12A | QA32-12B | QA32-14B |
| WEIGHT : | 500 kg | 700 kg | 1000 kg | 1000 kg | 1300 kg |
| FLAT STEEL CUT OFF : | 200x8 mm | 210x10 mm | 330x12 mm | 330x12 mm | 330x14 mm |
| SHEARING FORCE : | 360KN | 500 KN | 900 KN | 900 KN | 1200 KN |
| PUNCHING HOLE : | 22/22x30 mm | 22/22x30 mm | 30/12 mm | 22/12 mm | 22/14 mm |
| TOOL STROKE : | 27 mm | 30 mm | 36 mm | 3 6 mm | 36 mm |
| ANHLED STEEL : | 75x75x8 mm | 100x100x10 mm | 125x125x12 m m | 125x125x12 m m | 150x150x14 mm |
| CUT OFF ROUND STEEL : | 30 mm | 35 mm | 40 mm | 40 mm | 40 mm |
| TOTAL POWER : | 2.2 Kw | 3.0 Kw | 4.0 Kw | 4.0 Kw | 5.5 Kw |
| CUT GROOVED STEEL : | 8# | 120# | 160# | 160# | 200# |
| VOLTAGE : | 220V/230V/380V/415V | 220V/230V/380V/415V | 220V/230V/380V/415V | 220V/230V/380V/415V | 220V/230V/380V/415V |
| NR OF TOOL STROKE : | 30 Times/Min | 30 Times/Min | 30 Times/Min | 30 Times/Min | 30 Times/Min |
| EXTERNAL DIMENSIONS : | 900x600x1100 mm | 1100x600x1450 mm | 1100x600x1450 mm | 1100x600x1450 mm | 830x1250x1550 mm |
| | |||||
| Mold display | |||||
FREOUENTLY ASKED OUESTIONS
1.What about the payment term&price term?As usual, we accept T/T as the payment term, and the price termFOB is ok.
2.Are you a trading company or a factory?Xingtai Haoda Manufacturina Co. Ltd, is a manufacturer in HebeiProvince, China.We specialize in punching and shearingmachines and hoop bending machines for more than 10 years, andour high-quality products are welcomed by many countries.
3.How do you make your price?
We make the price according to our comprehensive costing. Andour price will lower than the trade company because we are
manufacture,You will get competitive price and better quality.
4.How about the packing?
Outside Package: Wooden packing case as export standard ; insidePackage: Stretch film.
5. What's the delivery time?
Usually, we will delivery the goods within 15-20 working days, butthis is aim at 1-10 pieces products, if more quantity, it
depends.
6.Questions before auotation?
Capacity? Lifting height? Voltage? Quantity? The more details themore accurate price quotation. Thank you.
7.what apout our mechanical features?
(1)Compact structure and reasonable design
(2) Easy to install, operate and maintenance
(3) Low noise and good working condition
(4)Three-phase power supply, suitable for a wide range of applica-
Tions
(5)Simple structure, easy to identify the cause of the failure, easy torepair and maintain
