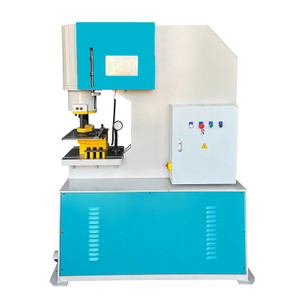

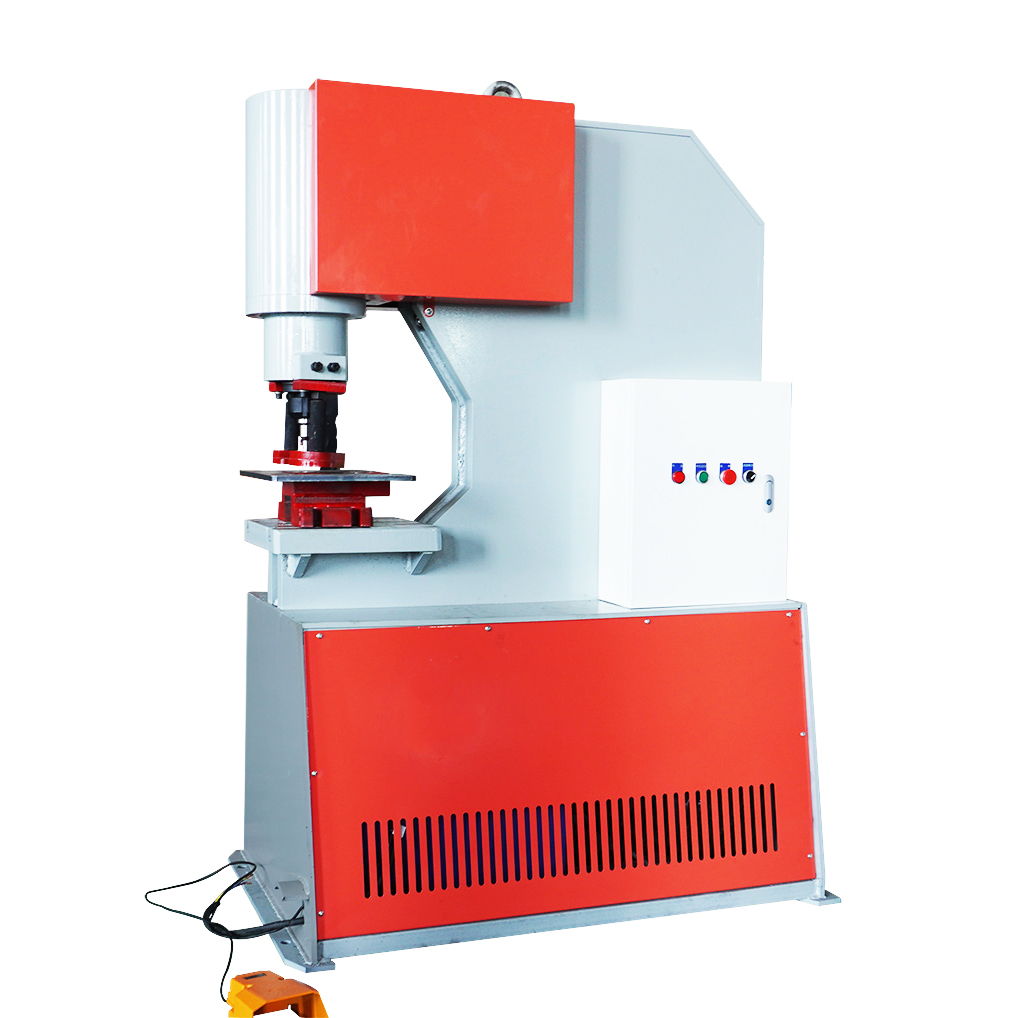

Q35Y-20 ironworking punching machine

Robust and accurate shaft system, avoid twisting the punch and gradually centering, and quickly replace the punching safety protection.
Availability:
Quantity:
  • Q35Y-20

  • Haoda Machinery

Q35Y-20 ironworking punching machine
TMain features: technical size bed

* Cylinder with additional rails.

* Robust and accurate shaft system, avoid twisting the punch and gradually centering, and quickly replace the punching safety protection.

* Sufficient space to install special equipment

* Optimal operating speed

* A large number of optional, standard and special accessories can perform a variety of tasks
* Punches range from 60T to 200T, with punching throat

In order to meet the needs of the transmission industry, our company provides a full set of hydraulic presses, such as slotting machines, iron workers, hydraulic machines, shearing machine punching machines, winding and bending machines, etc. Our hydraulic press is durable, easy to operate and long-term. These high-quality hydraulic presses are famous in the international market for their excellent functions, time-saving and cost-effectiveness. They are provided by us at industry-leading prices.

Parameters

MODEL :

QA35-20

WEIGHT :

1800KG

PUNCHING THICKNESS:

20 mm

SHEARING FORCE :

900KN

PUNCHING DIAMETER :

30 mm

TOOL STROKE :

80 mm

NR OF TOOL STROKE :

8-22Times/Min

MATERIAL STRENGTH (N/mm²):

≤450

DEPTH OF THROAT (mm)

355mm

TOTAL POWER :

5.5 Kw

VOLTAGE :

220V/230V/380V/415V

EXTERNAL DIMENSIONS :

1780×920×1780mm
