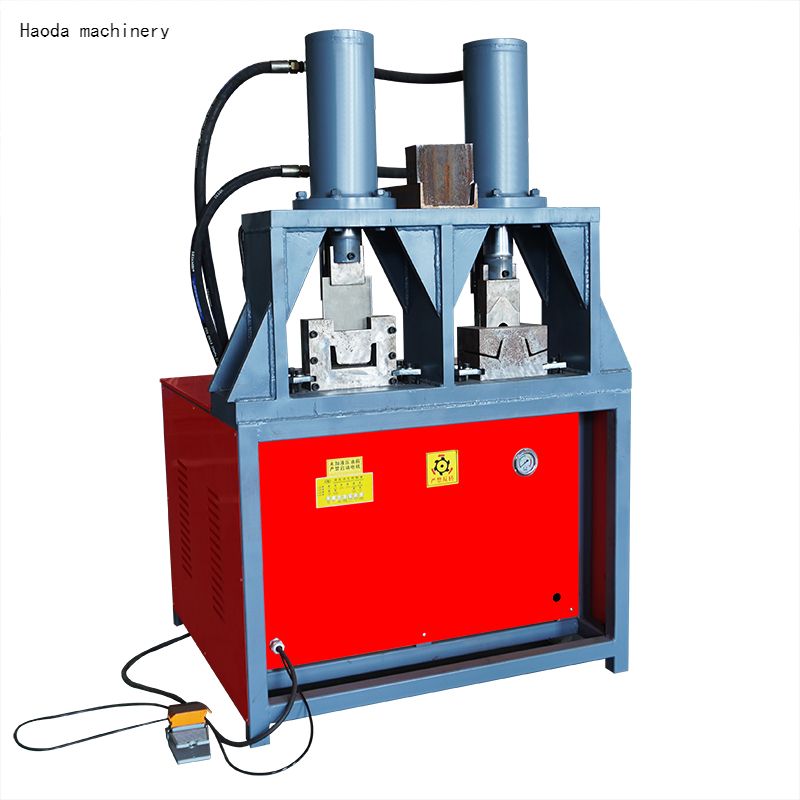

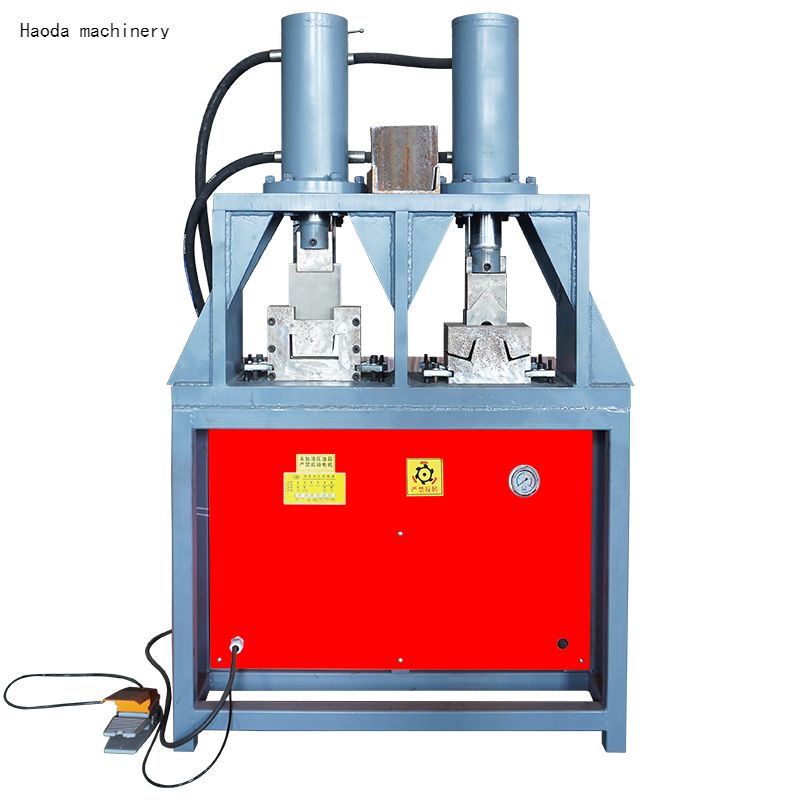

Channel steel cutting machine

One of the key advantages of hydraulic cutting machines is their versatility.

Availability:

Quantity:



Inquire Add to Basket

Model:
Hydraulic cutting machine
Brand:
Haoda Machinery

Versatility and Flexibility
One of the key advantages of hydraulic cutting machines is their versatility.They can be equipped with different types of blades and cutting tools to accommodate a wide range of materials and thicknesses. Whether you're working on intricate designs or heavy -duty industrial components, the hydraulic cuttingmachine can be customized to meet your specific needs.

Product details

Get A Free Quote

*Verify Code

Model	QA32-8B	QA32-10B	QA32-12A	QA32-12B	QA32-14B
Pressure	360KN	500 Thousand cattle	900 Thousand Newton	900 Thousand Newton	1200 Thousand cattle
Mold travel	27 mm	30 mm	36 mm	36 mm	36 mm
Stamping speed	30 Tests / minute	30 Tests / minute	30 Tests / minute	30 Tests / minute	25 Tests / minute
aggregate capacity	2.2 kw	3.0 kw	4.0 kw	4.0 kw	5.5 kw
weight	450 Kg	710 Kg	950 Kg	950 Kg	1300 Kg
Outline dimension	900 * 600 * 1100 mm	900 * 600 * 1200 mm	700 * 1100 * 1450 mm	700 * 1100 * 1450 mm	740 * 1180 * 1550 mm
Packing measurement	1000 * 680 * 1240 mm	1000 * 680 * 1460 mm	750 * 1200 * 1600 mm	750 * 1200 * 1600 mm	830 * 1250 * 1680 mm
Cut Angle Steel	Maximum of 75 * 8 mm	Maximum of 100 * 10 mm	Maximum of 125 * 12 mm	Maximum of 125 * 12 mm	Maximum of 150 * 14 mm
With groove steel	Maximum 8 #	Maximum 12 #	Maximum 16 #	Maximum 16 #	Maximum 20 #
Cut flat steel	Maximum of 180 * 8 mm	Maximum of 230 * 10 mm	Maximum of 330 * 12 mm	Maximum of 330 * 12 mm	Maximum of 330 * 14 mm
Punch thickness	Maximum 8 mm	Maximum 10 mm	Maximum 12 mm	Maximum 12 mm	Maximum 14 mm
Cut the round bar	Maximum value of Φ 30 mm	MAXφ35mm	Maximum value of Φ 40 mm	Maximum value of Φ 40 mm	Maximum value of Φ 40 mm
voltage		220V/380V/400V/415V
Voltage frequency		At 50 / 60 Hz
HS		8462490000

Model	QA32-8B	QA32-10B	QA32-12A	QA32-12B	QA32-14B
Pressure	360KN	500 Thousand cattle	900 Thousand Newton	900 Thousand Newton	1200 Thousand cattle
Mold travel	27 mm	30 mm	36 mm	36 mm	36 mm
Stamping speed	30 Tests / minute	30 Tests / minute	30 Tests / minute	30 Tests / minute	25 Tests / minute
aggregate capacity	2.2 kw	3.0 kw	4.0 kw	4.0 kw	5.5 kw
weight	450 Kg	710 Kg	950 Kg	950 Kg	1300 Kg
Outline dimension	900 * 600 * 1100 mm	900 * 600 * 1200 mm	700 * 1100 * 1450 mm	700 * 1100 * 1450 mm	740 * 1180 * 1550 mm
Packing measurement	1000 * 680 * 1240 mm	1000 * 680 * 1460 mm	750 * 1200 * 1600 mm	750 * 1200 * 1600 mm	830 * 1250 * 1680 mm
Cut Angle Steel	Maximum of 75 * 8 mm	Maximum of 100 * 10 mm	Maximum of 125 * 12 mm	Maximum of 125 * 12 mm	Maximum of 150 * 14 mm
With groove steel	Maximum 8 #	Maximum 12 #	Maximum 16 #	Maximum 16 #	Maximum 20 #
Cut flat steel	Maximum of 180 * 8 mm	Maximum of 230 * 10 mm	Maximum of 330 * 12 mm	Maximum of 330 * 12 mm	Maximum of 330 * 14 mm
Punch thickness	Maximum 8 mm	Maximum 10 mm	Maximum 12 mm	Maximum 12 mm	Maximum 14 mm
Cut the round bar	Maximum value of Φ 30 mm	MAXφ35mm	Maximum value of Φ 40 mm	Maximum value of Φ 40 mm	Maximum value of Φ 40 mm
voltage		220V/380V/400V/415V
Voltage frequency		At 50 / 60 Hz
HS		8462490000
